SpringBoot 集成H2 内存数据库解析

不点阅读：689 2021-03-31 13:19:17 评论：0

第一步：添加相关jar包依赖

        <!--h2-->
		<dependency>
			<groupId>com.h2database</groupId>
			<artifactId>h2</artifactId>
			<scope>runtime</scope>
		</dependency>
		<!--spring-data-jpa-->
		<dependency>
			<groupId>org.springframework.boot</groupId>
			<artifactId>spring-boot-starter-data-jpa</artifactId>
		</dependency>
		<!--lombok-->
        <dependency>
            <groupId>org.projectlombok</groupId>
            <artifactId>lombok</artifactId>
        </dependency>

第二步：application.properties 配置文件添加H2 内存数据库配置

#h2配置
#启用SQL语句的日志记录
spring.jpa.show-sql=true
#设置ddl模式
spring.jpa.hibernate.ddl-auto=update
##数据库连接设置
#配置h2数据库的连接地址
spring.datasource.url=jdbc:h2:mem:dbtest
spring.datasource.username=sa
spring.datasource.password=sa
spring.datasource.driverClassName=org.h2.Driver
##数据初始化设置
#进行该配置后，每次启动程序，程序都会运行resources/db/schema.sql文件，对数据库的结构进行操作。
spring.datasource.schema=classpath:db/schema.sql
#进行该配置后，每次启动程序，程序都会运行resources/db/data.sql文件，对数据库的数据操作。
spring.datasource.data=classpath:db/data.sql

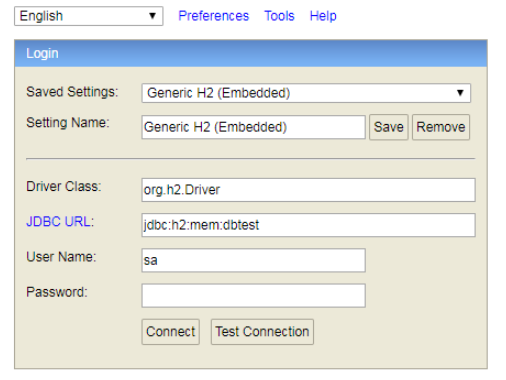

##h2 web console设置
#表明使用的数据库平台是h2
spring.datasource.platform=h2
# 进行该配置后，h2 web consloe就可以在远程访问了。否则只能在本机访问。
spring.h2.console.settings.web-allow-others=true
#进行该配置，你就可以通过YOUR_URL/h2访问h2 web consloe。YOUR_URL是你程序的访问URl。
spring.h2.console.path=/h2
#进行该配置，程序开启时就会启动h2 web consloe。当然这是默认的，如果你不想在启动程序时启动h2 web consloe，那么就设置为false。
spring.h2.console.enabled=true

第三步：添加H2内存数据库的数据结构和数据

resources/db/schema.sql

create table if not exists USER (
USE_ID int not null primary key auto_increment,
USE_NAME varchar(100),
USE_SEX varchar(1),
USE_AGE NUMBER(3),
USE_ID_NO VARCHAR(18),
USE_PHONE_NUM VARCHAR(11),
USE_EMAIL VARCHAR(100),
CREATE_TIME DATE,
MODIFY_TIME DATE,
USE_STATE VARCHAR(1));

resourses/db/data.sql

INSERT INTO USER (USE_ID,USE_NAME,USE_SEX,USE_AGE,USE_ID_NO,USE_PHONE_NUM,USE_EMAIL,CREATE_TIME,MODIFY_TIME,USE_STATE) VALUES(
1,'赵一','0',20,'142323198610051234','12345678910','qe259@163.com',sysdate,sysdate,'0');
INSERT INTO USER (USE_ID,USE_NAME,USE_SEX,USE_AGE,USE_ID_NO,USE_PHONE_NUM,USE_EMAIL,CREATE_TIME,MODIFY_TIME,USE_STATE) VALUES(
2,'钱二','0',22,'142323198610051235','12345678911','qe259@164.com',sysdate,sysdate,'0');
INSERT INTO USER (USE_ID,USE_NAME,USE_SEX,USE_AGE,USE_ID_NO,USE_PHONE_NUM,USE_EMAIL,CREATE_TIME,MODIFY_TIME,USE_STATE) VALUES(
3,'孙三','1',24,'142323198610051236','12345678912','qe259@165.com',sysdate,sysdate,'0');

第四步：添加H2内存数据库的实体映射和数据操作接口

实体对象:User

package com.zzg.entity;



import java.util.Date;

import javax.persistence.Column;
import javax.persistence.Entity;
import javax.persistence.GeneratedValue;
import javax.persistence.GenerationType;
import javax.persistence.Id;

import lombok.Getter;
import lombok.Setter;

@Getter
@Setter
@Entity
public class User {
	@Id
    @GeneratedValue(strategy = GenerationType.IDENTITY) // 自增长策略
	private Integer useId;

	@Column
	private String useName;

	@Column
	private String useSex;

	@Column
	private Integer useAge;

	@Column
	private String useIdNo;

	@Column
	private String usePhoneNum;

	@Column
	private String useEmail;

	@Column
	private Date createTime;

	@Column
	private Date modifyTime;

	@Column
	private String useState;
}

操作接口：UserRepository

package com.zzg.dao;

import org.springframework.data.jpa.repository.JpaRepository;
import org.springframework.data.jpa.repository.JpaSpecificationExecutor;
import org.springframework.stereotype.Repository;

import com.zzg.entity.User;

@Repository
public interface UserRepository extends JpaRepository<User, Integer>, JpaSpecificationExecutor<User> {

}

第五步：H2内存数据库查询功能验证

控制层定义

package com.zzg.controller;

import java.util.ArrayList;
import java.util.List;

import javax.persistence.criteria.CriteriaBuilder;
import javax.persistence.criteria.CriteriaQuery;
import javax.persistence.criteria.Predicate;
import javax.persistence.criteria.Root;

import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.data.jpa.domain.Specification;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.PathVariable;
import org.springframework.web.bind.annotation.RestController;

import com.zzg.dao.UserRepository;
import com.zzg.entity.User;

@RestController
public class UserController {
	@Autowired
	private UserRepository userRepository;


	@GetMapping("/user/{id}")
    public User findById(@PathVariable Integer id) {
        return userRepository.findOne(new Specification<User>() {

			@Override
			public Predicate toPredicate(Root<User> root, CriteriaQuery<?> query, CriteriaBuilder criteriaBuilder) {
				// TODO Auto-generated method stub
				 List<Predicate> predicates = new ArrayList<Predicate>();
	             // 用户编号
	             predicates.add(criteriaBuilder.equal(root.<Integer> get("useId"), id));

				return query.where(predicates.toArray(new Predicate[predicates.size()])).getRestriction();
			}
		}).orElse(null);
    }

}
